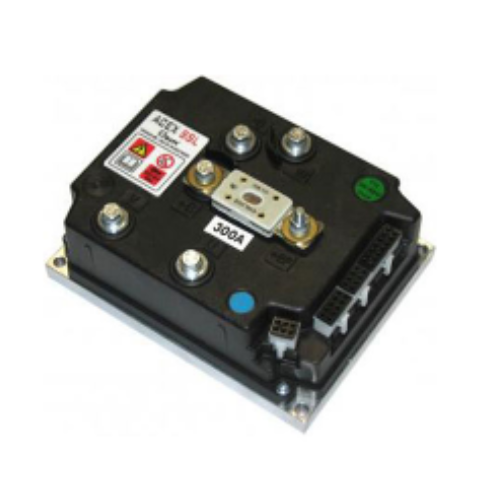

AC Evolution Series Inverters



ACEX

ACEX
  • Power Section
  • Mechanics
  • Features
Power supply 24V
Maximum current 165 Arms (2’)
Ambient Temperature range -40° +40°C
Maximum heatsink temperature 85°C (starts to reduce current)



Dimensions 138x180x87 mm (baseplate version)
Connector Mini-Fit
Protection IP65
Options Available with Al base plate or with finned heatsink
  • Can interface
  • Serial link
  • Digital I/O
  • Analog input



ACEX (CombiACX) PW

ACEX
  • Power Section
  • Mechanics
  • Features
Power supply 36V-48V, 24V
Maximum current 36-48V: 210Arms (2’), 24V: 240Arms (2’)
DC chopper maximum current 270 Arms (2’) Only for Combi-ACEX
Ambient Temperature range -40° +40°C
Maximum heatsink temperature 85°C (starts to reduce current)
Dimensions 138x180x87 mm
Connector Mini-Fit
Protection IP65
Options Available with Al base plate or with finned heatsink
  • Can interface
  • Serial link
  • Digital I/O
  • Analog input



ACEX (Combi-ACX) 2uC

ACEX
  • Power Section
  • Mechanics
  • Features
Power supply 24V
Maximum current 165 Arms (2’)
DC chopper maximum current 270 Arms (2’) Only for Combi-ACEX
Ambient Temperature range -40° +40°C
Maximum heatsink temperature 85°C (starts to reduce current)
Dimensions 138x180x87 mm (baseplate version)
Connector Ampseal 35 pin
Protection IP65
Options Available with Al base plate or with finned heatsink
  • Can interface
  • FOC control (with torque or speed control)
  • Digital I/O
  • Analog input



BLEX/ACEX (Combi-ACX) PW 2uC

ACEX
  • Power Section
  • Mechanics
  • Features
Power supply 48V
Maximum current 210 Arms (2’)
DC chopper maximum current 240 Arms (2’) Only for Combi-ACEX
Ambient Temperature range -40° +40°C
Maximum heatsink temperature 85°C (starts to reduce current)
Dimensions 138x180x87 mm (baseplate version)
Connector Ampseal 35 pin
Protection IP65
Options Available with Al base plate or with finned heatsink
  • Can interface
  • FOC control (with torque or speed control)
  • Digital I/O
  • Analog input
  • BLEX motor feedback sensor
  • SinCos/Hall Sensor



ACEX (Combi-ACX) PW 2uC

ACEX
  • Power Section
  • Mechanics
  • Features
Power supply 24/48V
Maximum current (24V) 240 Arms (2’), (48V) 210 Arms (2’)
DC chopper maximum current (24V) 270 Arms (2’) Only for CombiACX, (48V) 240 Arms (2’) Only for CombiACX
Ambient Temperature range -40° +40°C
Maximum heatsink temperature 85°C (starts to reduce current)
Dimensions 138x180x87 mm (baseplate version)
Connector Ampseal 35 pin
Protection IP65
Options Available with Al base plate or with finned heatsink
  • Can interface
  • FOC control (with torque or speed control)
  • Digital I/O
  • Analog input



ACEX New Generation

ACEX NEW GENERATION
  • Power Section
  • Mechanics
  • Features
Power supply 24V
Maximum current 150 Arms (2’)
DC chopper maximum current 270 Arms (2’) Only for Combi-ACEX NEW GENERATION
Ambient Temperature range -40° +40°C
Maximum heatsink temperature 85°C (starts to reduce current)
Dimensions 120x150x77 mm (baseplate version)
Connector Ampseal 35 pin
Protection IP65
Options Available with Al base plate or with finned heatsink
  • Can interface
  • FOC control (with torque or speed control)
  • Digital I/O
  • Analog input

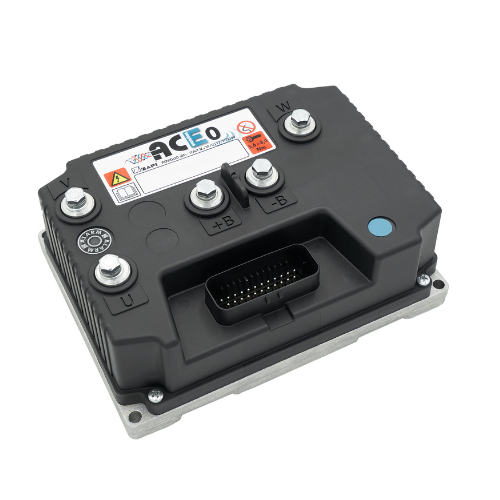

ACE0 PW

ACE0 PW
  • Power Section
  • Mechanics
  • Features
Power supply 80V
Maximum current (80V) 200 Arms (2’)
Ambient Temperature range -40° +40°C
Maximum heatsink temperature 85°C (starts to reduce current)
Dimensions 150x200x79 mm (baseplate version)
Connector Ampseal 35 pin
Protection IP65
Options Available with Al base plate or with finned heatsink
  • Can interface
  • QSC control (speed control)
  • Digital I/O
  • Analog input



ACE0 (CombiAC0) PW 2uC

ACE0 PW
  • Power Section
  • Features
Power supply 24V or 48V
Maximum current (24V) 350 Arms (2’), (36V, 48V) 320 Arms (2’)
Maximum current (24V) 400 Arms (2’) Only for CombiAC0,  (36V 48V) 300 Arms (2’) Only for CombiAC0
Ambient Temperature range -40° +40°C
Maximum heatsink temperature 85°C (starts to reduce current)
  • Can interface
  • FOC control (with torque or speed control)
  • Digital I/O
  • Analog input

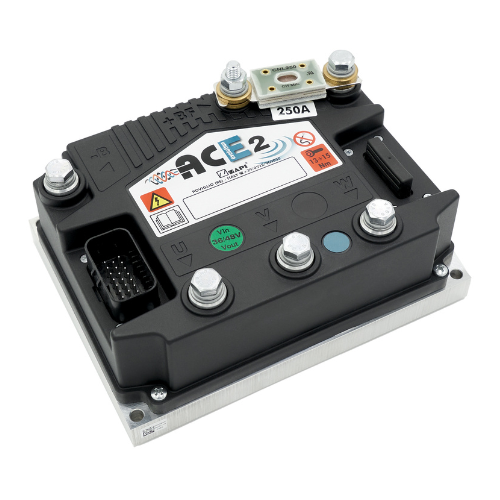

ACE2 PW 2uC

ACE2 PW 2uC
  • Power Section
  • Mechanics
  • Features
Power supply 24V, 48V, 80V
Maximum current (24V) 500 Arms (2’), (36V, 48V) 450 Arms (2’)
Ambient Temperature range -40° +40°C
Maximum heatsink temperature 85°C (starts to reduce current)
Dimensions 185x200x95 mm (baseplate version)
Connector Ampseal 23 pin
Protection IP65
Options Available with Al base plate or with finned heatsink
  • Double microcontroller architecture
  • Can interface
  • Serial link
  • FOC control (with torque or speed control)
  • Digital I/O
  • Analog input



ACE2 2uC

ACE2 PW 2uC
  • Power Section
  • Mechanics
  • Features
Power supply 36-48V, 80V
Maximum current (36-48V) 400 Arms (2’), (80V) 350 Arms (2’)
Continuous current (36-48V) 200 Arms (60’) (Dissipation needed)
Ambient Temperature range -40° +40°C
Maximum heatsink temperature 85°C (starts to reduce current)
Dimensions 150x200x95 mm (baseplate version)
Connector Ampseal 23 pin
Protection IP65
Options Available with Al base plate or with finned heatsink
  • Double microcontroller architecture
  • Can interface
  • Serial link
  • FOC control (with torque or speed control)
  • Digital I/O
  • Analog input



ACE2 New Gen

ACE2 NEW GEN
  • Power Section
  • Mechanics
  • Features
Power supply 36-48V, 80V
Maximum current (36-48V) 450 Arms (2’), (80V) 400 Arms (2’)
Ambient Temperature range -40° +40°C
Maximum heatsink temperature 85°C (starts to reduce current)
Dimensions 150x200x91 mm (baseplate version)
Connector Ampseal 23 pin
Protection IP65
Options Available with Al base plate or with finned heatsink
  • Double microcontroller architecture
  • Can interface
  • FOC control (with torque or speed control)
  • Digital I/O
  • Analog input



ACE3 2uC

2
  • Power Section
  • Mechanics
  • Features
Power supply 48V, 80V
Maximum current (48) 600 Arms (2’), (80) 550 Arms (2’)
Ambient Temperature range -40° +40°C
Maximum heatsink temperature 85°C (starts to reduce current)
Dimensions 230x200x95 mm (baseplate version)
Connector Ampseal 23 pin
Protection IP65
Options Available with Al base plate or with finned heatsink
  • Double microcontroller architecture
  • Can interface
  • FOC control (with torque or speed control)
  • Digital I/O
  • Analog input



ACE4 (ACE4 PR)

ACE-4
  • Power Section
  • Mechanics
  • Features
Power supply 48V, 80V
Maximum current 48) 800 Arms (2’), (80) 700 Arms (2’)
Ambient Temperature range -40° +40°C
Maximum heatsink temperature 85°C (starts to reduce current)
Dimensions 235x204x103 mm (baseplate version)
Connector Ampseal 23 pin
Connector PR version: Ampseal 35 pin
Protection IP65
Options Available with Al base plate or with finned heatsink
  • Double microcontroller architecture
  • Can interface
  • FOC control (with torque or speed control)
  • Digital I/O
  • Analog input



ACE5 2uC

ACE-5
  • Power Section
  • Mechanics
  • Features
Power supply 120V
Maximum current (120) 750 Arms (2’)
Ambient Temperature range -30° +40°C
Maximum heatsink temperature 75°C (starts to reduce current)
Dimensions 370x300x95 mm (baseplate version)
Connector Ampseal 35 pin
Protection IP65
Options Available with Al base plate or with finned heatsink
  • Double microcontroller architecture
  • Can interface
  • FOC control (with torque or speed control)
  • Digital I/O
  • Analog input
