EPS Integrated Steering Systems

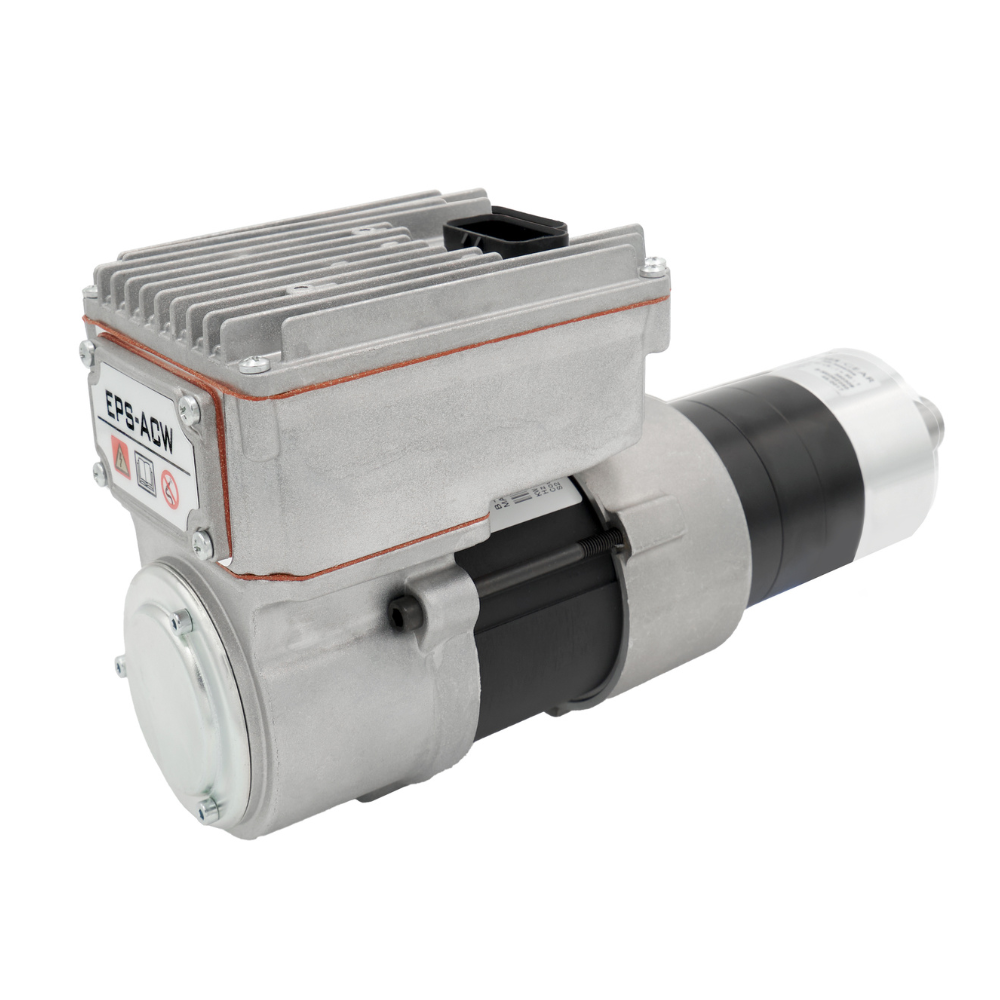

EPS ACW

EPS Integrated Steering Systems
  • Power Section
  • Mechanics
  • Features
Power supply 48V
Maximum current (48) 70 Arms (2’)
Ambient temperature range -30° +40°C
Maximum heatsink temperature 80 °C
Dimensions 150x110x70 mm
Connector Ampseal 23 pin
Protection IP65
Options Available with motor or stand alone
  • Double microcontroller
  • Double Can interface
  • FOC control
  • TFD driving output (User torque feedback)
  • Digital I/O
  • Twin pot or incremental encoder sensor
  • Available in wire guidance configuration

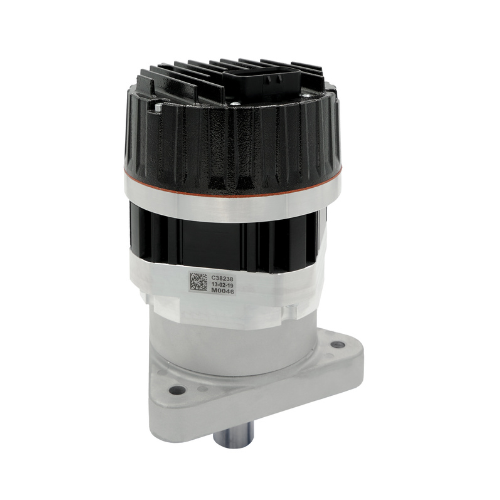

EPS BLI

EPS BLI
  • Power Section
  • Mechanics
  • Features
Power supply 48V
Maximum current (48) 70 Arms (2’)
Ambient temperature range -30° +40°C
Maximum heatsink temperature 80°C
Dimensions 192x132x132 mm
Connector Ampseal 23 pin
Protection IP65
  • Double microcontroller
  • FOC control
  • Digital I/O
  • Twin pot or incremental encoder sensor

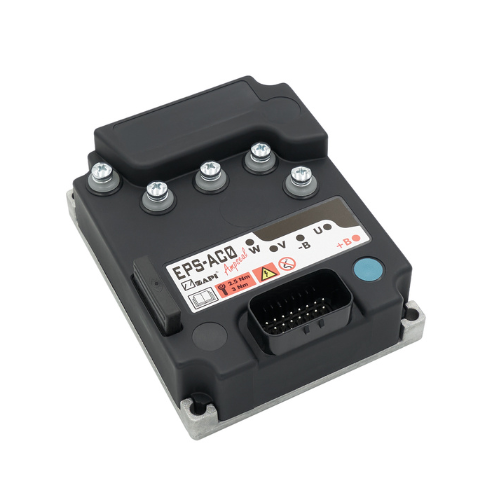

EPS AC0 AMPSEAL

EPS AC0
  • Power Section
  • Mechanics
  • Features
Power supply 24-36 V, 36-48 V
Maximum current (2') 24-36 V: 50 Arms ÷ 85 Arms
36-48 V: 45 Arms, 70 Arms
Ambient temperature range -30°C ÷ +40°C
Maximum heatsink temperature 78°C
Dimensions 150x120x54 mm
Connector Ampseal 23 pins
Protection IP54
  • Double microcontroller
  • Can interface
  • Digital I/O
  • Twin pot or incremental encoder sensor
  • Available in wire guidance configuration

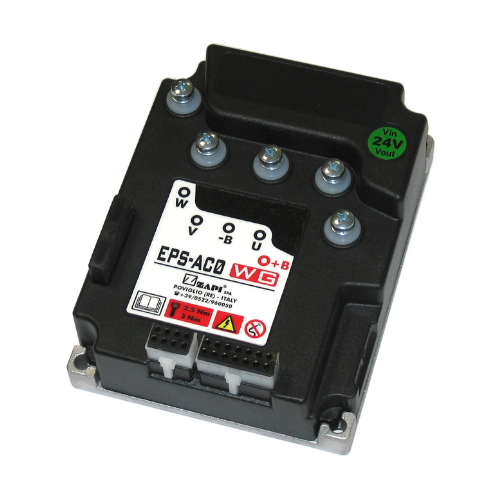

EPS AC0 WG

EPSAC0WG
  • Power Section
  • Mechanics
  • Features
Power supply 24-36 V, 36-48 V
Maximum current (2') 24-36 V: 50 Arms ÷ 85 Arms
36-48 V: 45 Arms, 70 Arms
Ambient temperature range -30° C ÷ +40°C
Maximum heatsink temperature 78°C
Dimensions 150x120x54 mm
Connector Mini-Fit
Protection IP54
  • Double microcontroller
  • Can interface
  • Digital I/O
  • Twin pot or incremental encoder sensor
  • Wire guidance configuration

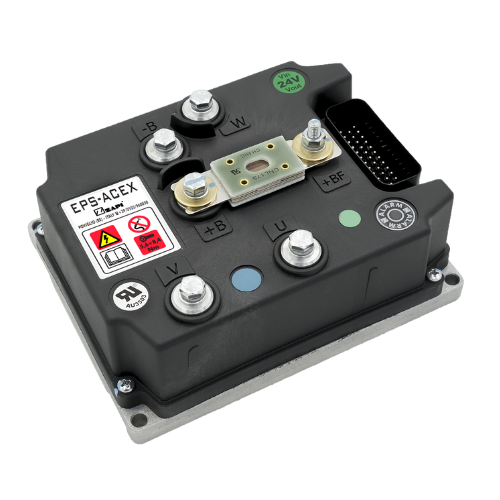

EPS ACEX

EPS ACEX
  • Power Section
  • Mechanics
Power supply 80 V
Maximum current 115 Arms
Ambient temperature range -40º ÷ +40ºC
Maximum heatsink temperature 85º C
Dimensions 180x138x86 mm
Connector Ampseal 35 pins
Protection IP65
